is an art & design campus that aims to rethink Dubai’s live-work ways of operation, fostering senses of curiosity and encouraging a non-normative way of working, which is achieved through the assembly of on-site materials, connectivity to the landscape, and through rethinking as zoning, procession, and materiality.
Human beings are naturally curious, seeking opportunities to playfully explore and discover while wondering around. Unfortunately, today the structure of the urban environments around the world limits the inherit curiosity to almost complete familiarity and expectedness. This is due to the over inscription of codes creating somewhat of a procedure, a routine that humans regularly and unconsciously adhere to. Thus, human behavior and movement in the city is foreseeable and imposed.

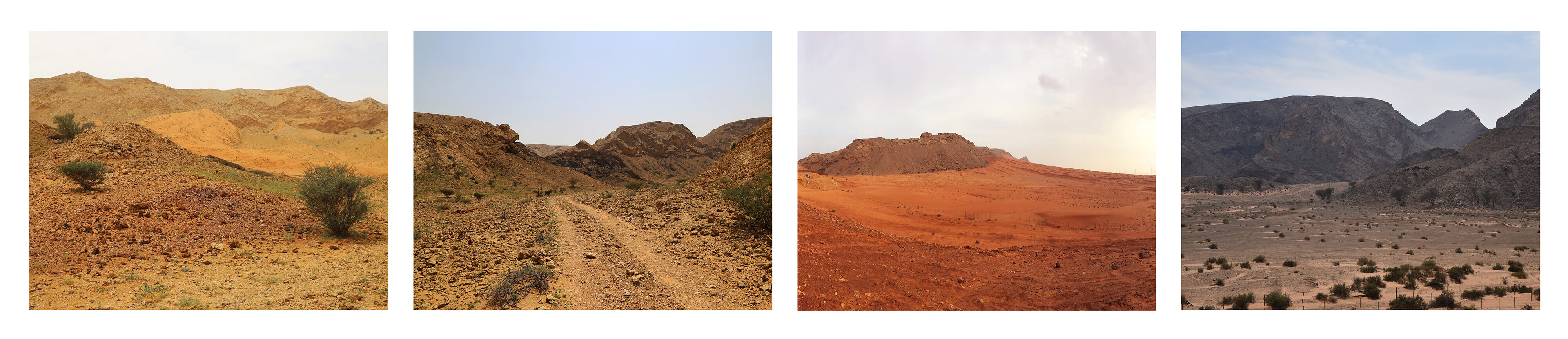

The United Arab Emirates, Dubai in particular, is a city that is growing at a very high speed. This increased our tendency to move through public spaces quickly without engaging with the surroundings much as everything around us is being streamlined and made more effective at high speeds rather than leisurely strolls. The UAE desert, just a few kilometers away from the city is an environment where one could say that it doesn’t abide to any specific way of operation. The desert environment is unfamiliar to city dwellers, there are no inscribed pathways for guidance, the ground plane exhibits a variance in heights, and the environment is characterized by many contrasting material conditions; textures from the soft sand to the rough mountain, smell, touch, scale and color.
Through an active landscape strategy which organizes the proposed art campus into a series of flows connecting interior and exterior with the desert to deepen the cultural relationship to nature and provides passive, sustainable strategies to increase the building’s thermal mass. Our proposal strategically intensifies and re-imagines the live-work programs through layers of landscape and natural light to produce an iconic cultural landmark using the existing site qualities to create a mysterious built environment.

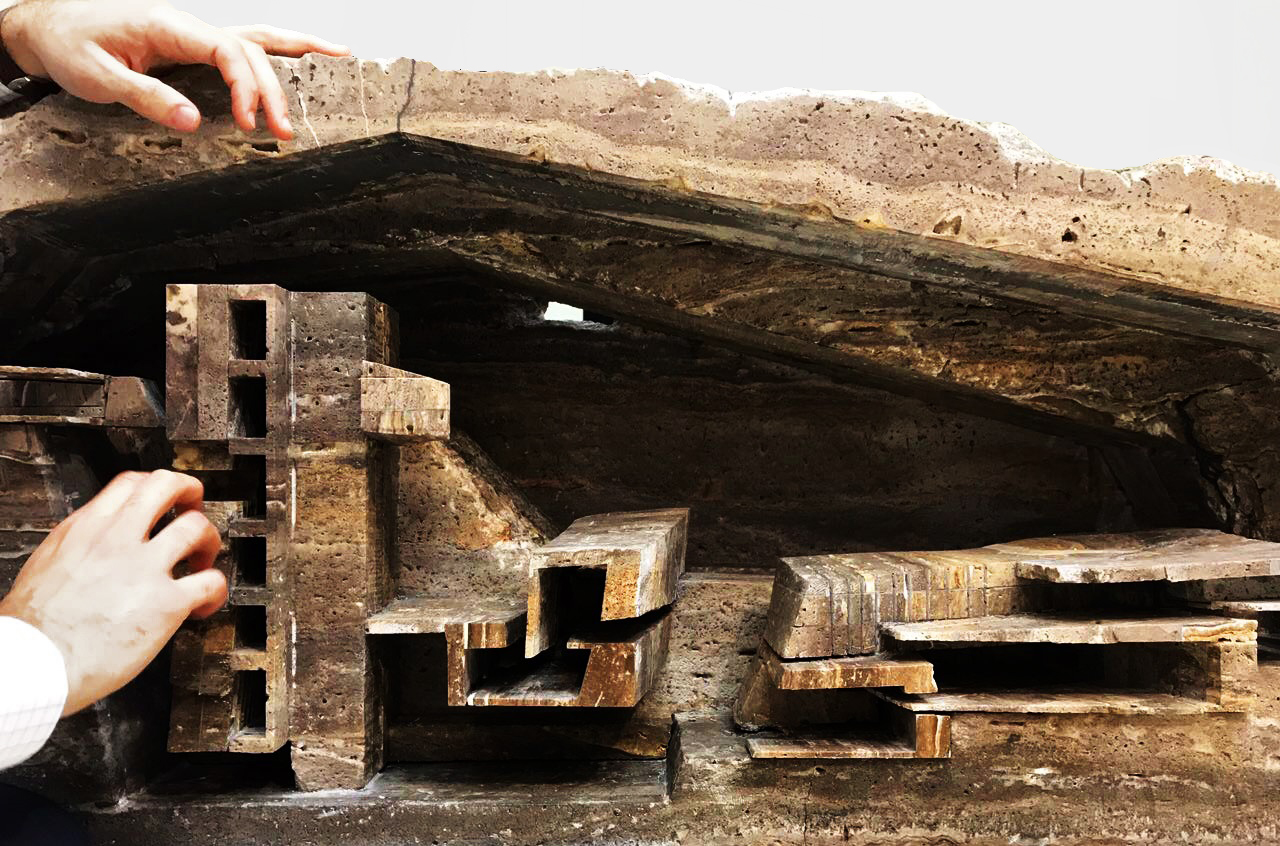

Hence, our proposal “Salient Extension” is an art & design campus that aims to rethink Dubai’s live-work ways of operation, fostering senses of curiosity and encouraging a non-normative way of working, which is achieved through the assembly of on-site materials, connectivity to the landscape, and through rethinking as zoning, procession, and materiality. The project is assembled through an additivesubtractive quarrying process of stone from its context. The products of extraction and leftovers are cataloged and then re-purposed within the project in different scopes, scales, and functions depending on the programmatic and structural needs of every space. While the spaces adhere to the limits of stone in creating structure, yet it pushes it limits through advanced robotic stone fabrication.
Processed information from the flight to ensure dataset quality, errors due to excessive motion and flight path information such as areas, heights, GPS information..etc.
Looked at different map information to extract useful input for our site simulator and agent ML training.
The application and interface developed on Unity includes:
Ray Perception Sensor 3D, aperception sensor that returns a compressed representation of the observation:obstacle (positive / red), void (negative / white).
Through trial and error, we learntthat enabling the agent with multiple perception sensor enhanced the trainingresults.
NPC: Non-Player Character
ML trained simulations on several scenarios:
Travel behavior and paths is almost evenly distributed.
A specific area in the center of the site is rendered inaccessible.
The site is predominantly split with a single access point.
The site is completely split and most destinations are now inaccessible.
The project begins by looking closely at irregular forms. How can useful information be extracted and utilized in a robotic system. The initial step is to 3D scan rocks and compute their surface deformation, slope of the faces, and how computational workflows could estimate their forms.
Parametric simulation of the delta robot enabled by the capacitive tracking of the 6 pads allows the model to understand the three key positions the delta arms are going to tween with bounding limits of the servo motors.
Running simulations to orient the rocks along an axis that will enable a smoother and more efficient contact with the gripper.
Capacitive sensors are used as the pickup detection system, where once a rock is placed on one of the 6 pads, the information is relayed to the processor to initiate a pickup command to the que.
The arm projects forward to act as a support based or scaffolding for the rock above. This arm is gently pulled out after the rock ontop is stabilized by another rock on top of it.
The machine is composed of several systems working together to construct novel and precise compositions.
A technical inside look into the components of each system.
The project was studied in three distinct contexts. First,the primary testing site was in Sumner Street in Cambridge, MA. A small-scale neighborhoodstrip that connects several Harvard University buildings and features a mix ofresidential housing structures and academic centers. The site is situated nearbusy squares and has become an active line of transportation after the area wasconverted into a single-way traffic street. Given its proximity to our baselocation it serves as an ideal testing ground for both the development and theproduct testing phases. The assumption for this site choice is to understandhow air quality is affected by various times of the day, which dictate traffic inand out of academic and office spaces in the area.
The second site studied is an edge condition between natureand infrastructure. The Harvard Arnold Arboretum adjacent to the Forest Hillsbus and train stations. The three sensors placed beginning from the streetintersection and into the wilderness of the Arboretum.
The third site is Downtown Boston, where reflecting on learningsfrom the 1973 Dabberdt’s Urban diffusion simulation for carbon monoxide inurban canyons by the Stanford’s Environmental Lab, sensors are placed alongdifferent sides of the canyon to understand the disparity between readings withinone small urban area.
To simulate the effect if four gases, we collect informationon the characteristics of these gases in real world open-air scenarios. Thefour gases: Carbon Dioxide, Carbon Monoxide, Ground-level Ozone, and NitrogenDioxides. The features are color, density, flammability, melting and boilingtemperatures. In simulation, these behaviors are translated into decay,movement vectors, and color for each of the gases.
As shown below, the simulation of each of the gases in unrealengine 5.0 using the niagra systems.
We design a standalone desktop application / interface thatprovides users with several features including:
Testing at each of the sites with three sensors in real-time.
In order to activate the 3D environment and capture personal-exposure levels in a low computational power, a stack of several mathematical layers were developed on a two-dimensional plane.
Calibrating low-cost custom air sensors by synchronizing and collecting data in real-time from the Environmental Protection Agency (EPA) Tthen comparing them against
Onsites (Sumnert St, Harvard Arboretum, Downtown Boston) testing.
All images, video, and text courtesy of Deeplocal (Pittsburgh, PA).
The story of a fall 'ghaf' tree within the UAE's desert scape.
Generative Abstraction of Average Paths & Kinks.
Project information coming soon.
Project information coming soon.
Project information coming soon.
Project information coming soon.
Project information coming soon.
Despite the earlier apocalyptic predictions about workers being replaced by intelligent machines as Artificial Intelligence (AI) finds its way to businesses, the course of AI seem to be taking a new tactic: actively searching for ways to collaborate with human. Human intelligence paralleled with AI capabilities and and computational speeds, is a novel gateway to modern design tools. Humans and AI actively enhance each other’s complementary strengths: the leadership, teamwork, creativity, and social skills of the former, and the speed, scalability, and quantitative capabilities of the latter [15]. Unlike the commonly know Human-AI interaction, collaboration involves a mutual goal understanding, task co-management, and shared progress tracking [14]. In a creative collaborative creation process, human-AI collaboration could occur in multiple forms. For example, humans could initiate a design workflow with a first parameter that resembles an intent, from which an AI model could begin to complete, suggest or analyze the content giving live feedback that would enrich the process. The user then navigates through the option to steer the next steps. Using reinforced learning techniques, a reward and penalty system is implemented to curate the process as the AI model continues to learn from the human input. Therefore, prototyping faster, with wider range of design exploration, and efficient analysis. A similar example, when an AI model transforms and visualizes simple creations done by humans in real time into new more complex forms.
For many, sketching, which ranges from quick gestures to refined drawings, is a root step in any creation process. It has been predominantly flattened into a two dimensional surface, minimizing the many design information a simple gestural sketch could embody. The interactive design experience and process that is usually initiated with a ’sketch’ is further enriched by moving beyond two dimensional surface into three dimensional environment. Hence, space as a canvas of creative and interactive prototyping. Spatial 3D sketching has been for long limited to VR hardware and typically requires special hardware for motion capture and immersive stereoscopic displays. Recent advances in motion-tracking algorithms in smart phones, such as Concurrent Odometry and Mapping (COM) [10] and Visual Inertial Odometry (VIO) [8], enabled the utilization of mobile phones as a stylus and screen for mid-air 3D sketching. Mid-Air sketching using the mobile phone is a technique that enables designers and creators to draw virtual gestures or curves directly in the air in 3D. Unlike VR, AR allows users to author 3D sketches that are more directly linked to real-world objects or environments [7], making it a powerful tool for rapid prototyping.
Fologram is a mixed reality application for Rhinoceros and Grasshopper 3D that is compatible with HoloLens 2, HoloLens 1, iOS and Android [1]. It accurately positions digital content in 3D space, streams and interacts with models, working with gestures and markers, modelling and controlling data flow. Some of its most common use cases within the architectural space beyond visualization is overlaying fabrication instructions for complex and atypical systems. It allows for various levels of control of the geometry, layers and grasshopper parameters in real time through its interface.
Deep networks have been used for various tasks around 3D object understanding and geometry generation. Li et al. [9], Su et al. [13], and Girdhar et al. [5] proposed to learn a joint embedding of 3D shapes and synthesized images for 3D object recognition. Using a recurrent network, Wu et al. [16], Xiang et al [18], and Choy et al. [3] attempted to reconstruct 3D objects from a wide selection of images. Other attempts at understanding 3D voxel based geometry representation was via exploring autoencoder based deep networks [5], [12]. Generative Adversial Networks (GAN) [6] introduces the use of a generator and an adversial discriminator, where the discriminator classifies real objects and objects created by the generator, while the generator attempts at confusing it. This in particular a is a favored framework for 3D object modeling as 3D object are highly structured, therefore the model is able to capture the structural difference of two 3 D objects [17]. Furthermore, 3D GAN could be used to sample through the probabilistic latent space creating a wide range of 3D dataset for design exploration and model training.
The biggest disadvantage of employing a 3D GAN to explore ideas is that the latent vector’s majority of dimensions are incomprehensible to a human designer. Furthermore, due to the enormous number of parameters, such a design space is difficult to explore. In this research, we aim to present a new, creative way of human-AI collaboration through the medium of AR, for the use-case of interior design - particularly, we focus on designing and placing furniture in a given space. To do this, we develop an AR based 3D drawing app, where users’ can use their phones to move in three dimensions and draw strokes that resemble a furniture of intent. The reason for using this mode of human-computer interaction is to allow users to move around their space, and conceptualise objects to-scale and in-position in their space through an easy-to-use AR drawing interface. Through interactive AR based 3D sketching, this project also aimed at creating a natural approach to interact with 3D GANs. We also present a novel algorithmic workflow for processing these sketches and represent them automatically, for use in a machine learning pipeline. We evaluate several machine learning algorithms to predict the mesh / mesh-representations and propose a Multi-Layer Perceptron (MLP) based regression method to reconstruct 3D meshes from user-input sketches through weightencoded neural implicit [4] prediction.
We begin preparing our data-set. For our proposed problem, we need a data-set that comprises of mesh-sketch pairs. There are several large-scale 3D object data-sets available like ShapeNET [2] that can be labeled with appropriate data. However - in our problem - we aim to predict meshes that are able to ”morph” themselves to different sizes and proportions of sketch strokes. So we would not only require perfect geometries, but also interpolations between several geometries to get hybridized results that work well with sketches of diverse shapes and sizes. Hence, we decide to generate our data artificially. To do this, we choose to use the pre-trained chair and sofa generators (Figure 1) from [17]. It presents a novel method to generate 3D objects with an architecture called 3D Generative Adversarial Network (3D-GAN), which uses recent breakthroughs in volumetric convolutional networks and generative adversarial nets to generate 3D objects from a probabilistic latent space.
Figure below: 3D GAN generator architecture
We first sample 1000 randomly generated 128-dimensional latent vectors that are distributed normally in the range [-2, 2]. We use these latent vectors and feed them into the 3D GAN to generate corresponding 3D meshes from the latent space of the generator. Each sampled latent vector corresponding to the generated mesh is stored in a csv file for later use. We also save the generated meshes as obj files. Some of the generated geometries are shown below.
Figure below: Generated 3D objects from 3D GAN latent space
For our problem, there were no 3D sketch data-sets available. Hence, we design an algorithmic approach to generate our sketches from the mesh geometries sampled from the 3D GAN, in a parametric design tool called Grasshopper3D [11]. We aim to generate sketches that are natural looking and organic, that would look like a quick conceptual sketch - similar to what users would draw. In order to achieve such sketch strokes from our sampled meshes, the saved obj files of the meshes are loaded iteratively and several points are samples from the geometry. The number of sampled points is decided qualitatively based on how much they can represent the mesh morphology. In our case, 128 samples were identified to be sufficient. These sampled points are then sorted according to their spatial proximity in world coordinates. The sorting algorithm is shown below in the algorithm below.
Once we have the sorted point-list, the points are joined by a polyline in order. This create a dense and jagged linelike curve along the sorted points. The polyline is then simplified and smoothed using B-spline approximation to a 3-degree curve. All the variables used in processing the line are parametric, and the final threshold values are calculated qualitatively for random samples from 3D GAN. The final smoothed curve resembles a conceptual sketch stroke, similar to what we were aiming. The overall process is illustrated in Figure 3. This process is repeated for all 1000 sampled meshes, and corresponding sketch strokes are recorded. Some of the generated sketches and their corresponding mesh samples are shown in the below figures.
Algorithm to generate 3D sketch strokes from mesh. (clockwise) Sampling points on mesh, sampled points, sorting points based, polyline connecting sampled points, reduced polyline, B-spline smoothing to get sketch curve
Once we have the generated sketch strokes for the sample meshes, there needs to be a way to represent them. This representation is also required to process user-drawn sketches to use in a machine learning pipeline. We also want this representation to be proportional in dimension to the latent vectors that were used to sample different meshes from the 3D GAN. The latent vectors are 128 dimension vectors, and hence we initially decide the sketch representation vectors to be 128 dimensions as well. In order to do so, we sample 128 points from the generated sketch stroke of each mesh. Then, a bounding-box with a centroid is created around the sketch stroke, each of the sampled points from the previous step are connected from the bounding-box centroid. This creates a list of 128 vectors, each anchored at the centroid and connected to each corresponding point from the sampled points. These vectors are normalised to bounding box dimensions, to finally fall in the [0,1] domain. We then use this list of normalized vectors (taken in order of points) to represent our sketch vector. The overall process is illustrated in the below figures.
Examples of sampled meshes (above) and their generated sketch strokes (above).
Examples of sampled meshes (above) and their generated sketch strokes (above).
Our initial attempt to map sketches to meshes was to try to predict the latent vectors that were used to sample meshes - from the generated sketch representation vectors. We use a K-nearest neighbor (KNN) regression algorithm to try to achieve this. The intuition behind using KNN was to try to identify the latent vector that is closest to (in-terms of distance) the input sketch representation vector, and sample a mesh geometry from the 3D GAN with the predicted latent vector. KNN is also non-parametric to the given number of closest neighbors (K value), which means we won’t have the issue of average collapse - where we get a mean prediction across all input sketch representation vectors. We first run a hyper-parameter search using cross-validation, with the following parameter-space dictionary.
The result of the hyper-parameter search yielded 14 neighbors, ’distance’ weights - where each feature is weighed inversely proportional to their distance - and p value of 1 (Manhattan distance).
Overall training cycle for KNN regressor (below).
On using KNN Regression, we found that the model performed satisfactorily with a cross-validation accuracy of 71% (5 folds). These predictions were then fed back into the AR app, displaying the sampled mesh in the users’ environment. However, the results where very close to each other, predominantly predicting latent vectors that generated similar looking meshes. While the semantic features of the mesh - like hands, legs, shape - were well mapped, the overall shape, scale and proportions of the mesh did not match the input sketch. Some of the predictions in the AR app interface are shown below.
We noticed that the predicted meshes were semantically correct - where if the sketch indicates no hands, the mesh has no hands as well. However, they are either very similar in nature (1st, 2nd and 3rd images in Figure 7) or undesirable (4th image in Figure 7). We also noticed that for two very different latent vectors, the sampled meshes were very similar qualitatively. This suggested that rather than mapping sketches to latent vectors and sampling meshes, there needed to be a much more direct representation of the meshes. And consequently, we also need similar embeddings for the sketches for everything to work smoothly.
In our subsequent iteration, we represent the meshes and the sketches as neural implicits [4]. A Neural Implicit representation is a function that determines whether a queried point lies inside, outside or on the surface of our geometry. In this paper, we use Signed Distance Function (SDF) - that returns at any point, the distance to the outer surface of the geometry with the sign indicating whether the point is inside or outside. We recognize that it is easy to represent our meshes and the sketches using neural implicit functions. On training a model on these values, we can map between the sketch and mesh representations bidirectionally. We begin by sampling 100,000 points around the mesh and sketch objects independently, using Latin Hypercube Sampling. Then, we accept 10,000 samples from them based on their distance from the mesh/sketch. We do this to make sure that all our samples useful (i.e.) lie close to the object. The final samples and their corresponding distances are recorded as points and float respectively. This process is repeated iteratively for all 1000 mesh objects and sketch strokes, giving us four feature vectors :
The overall data representation process is illustrated in the diagram below. These vectors are then fed into a simple MLP regression in different combinations and evaluated. First, we train pairs of sketchSamples and meshDistances to be able to predict implicit mesh representation, given the sketch samples. If we get the meshDistances, we can reconstruct the mesh using algorithms like cube-marching. In our next iteration, we train using pairs of sketchDistances and meshDistances. The intuition behind this experiment was to be able to predict meshDistances from sketchDistances. And then finally, we train the model with pairs of sketchSamples and meshSamples to be able to map directly between the two samples of points. These experiments are further explained in the next section.
Above: Accepted points from Latin Hypercube sampling around meshes and sketches with decreasing distance visibility. We felt that at the 10,000 sample mark, the points were spread well around both the sketch and the mesh.
The model is a simple MLP Regressor, with 8 hidden layers of 512 dimensions each as shown in Figure 8. We use ReLU activation and Adam Optimizer with a learning rate of 0.0001. The model is trained for 200 epochs with a batch-size of 50 samples. We use L1 Loss for training.
The training data used for the model is as follows:
Here the goal was to predict meshDistances on the sketch sample points in order to get a SDF of the mesh for reconstruction. So, when a user draws a sketch, we can sample points around the sketch and get a SDF of the mesh on those samples from the MLP. The results were really interesting, with more diversity in predictions. Along with semantic features like arms or legs, even the scale and proportions are matched to a great extent. Training loss is shown below.
The objective of this experiment was to be able to predict a SDF of the mesh from the sketchDistances for reconstruction. This is to accommodate multiple strokes drawn by the user. If the user draws a new stroke on an existing stroke, instead of sampling points again, we can recalculate the distances and directly get the mesh SDF for reconstruction. The results were qualitatively good, similar to the previous experiment. Training loss is shown below.
The intuition behind this final experiment was to see if point-to-point regression would yield better results. On training with sketchSamples and meshSamples, the results were fairly similar to the previous two examples. All experiment predictions are shown below.
While the KNN regression performed satisfactorily in predicting latent vectors for input sketch-vectors, the MLP regression with SDF based neural implicit representation worked best for the current problem. Through this paper, we aim to create a robust, modular and easy to use AR application that translates mid-air drawn 3D sketches into mesh geometries using an MLP based regression model. The front-end interface provides various controls and tools that aid in the drawing processes and the visualization of the 3D geometries. Simple 3D gestural sketches suffice for an accurate prediction. Therefore, allowing users with minimal drawing skill-set to equally use the tool and prototype.
